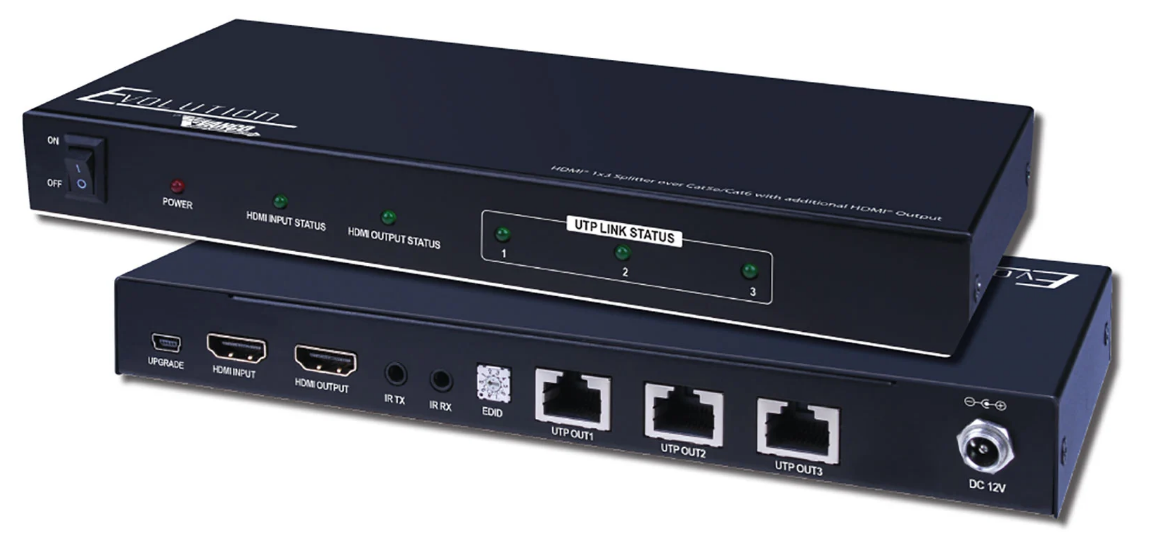

Vanco Evolution HDMI® 1×3 Splitter over Cat5e/Cat6 Cable with Additional HDMI® Output

This HDMI splitter allows a single HDMI input to be distributed to up to four displays, making it ideal for multi-screen AV installations. It features three RJ45 outputs with PoE functionality, enabling connection to EVRX2006 PoE receivers (sold separately) over Cat5e/Cat6 cable to transmit 1080p@60Hz video, audio, and control signals up to 164ft (50m).

Power is delivered over the same Cat5e/Cat6 cable, eliminating the need for separate power supplies at the receiver end. An additional HDMI output is included for a local display or system cascading to expand distribution capability.

Designed for flexible control and compatibility, it supports 20–60kHz wideband bi-directional IR communication, HDCP 2.0 compliance, and multiple audio formats including Dolby TrueHD and DTS-HD Master Audio. It also supports all 3D signal formats and features manual or dynamic EDID management for optimized display matching.

The unit measures 8.1” W x 1” H x 3.5” D and includes patent-protected technology (Patent No. 9,710,038 B1). Compatible receiver: EVRX2006. Note: ensure matching generation versions across splitters and receivers for proper compatibility.
