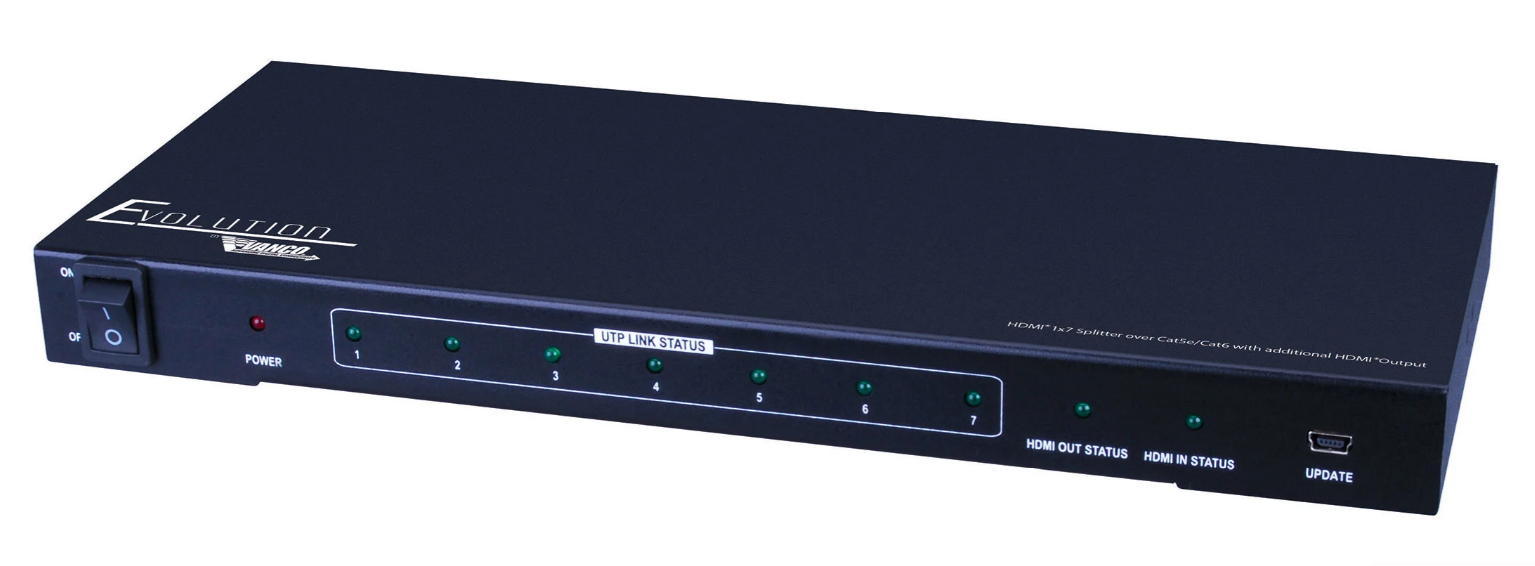

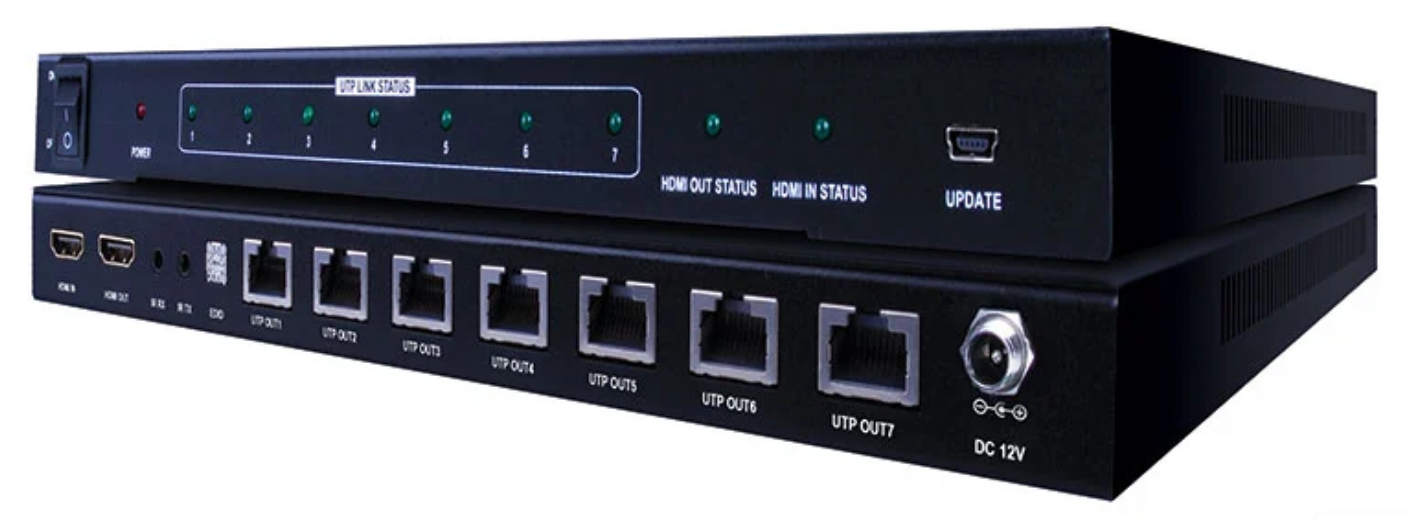

Vanco Evolution HDMI® 1×7 Splitter over Cat5e/Cat6 Cable with Additional HDMI® Output

This HDMI distribution system allows a single HDMI source to be displayed on up to 7 HDMI displays over a single Cat5e/6 cable, making it ideal for multi-display installations. It supports transmission of 1080p signals up to 164ft (50m) when paired with compatible receiver units (EVRX2006 or EVWP2006RX, sold separately).

Featuring Power over Ethernet (PoE), the system can power receiver units directly from the splitter, eliminating the need for separate power supplies. It also includes dynamic or manual EDID management for optimized compatibility, as well as an additional HDMI output for local display or system cascading.

Designed for enhanced control and flexibility, it supports HDMI Deep Color, 3D video, and multiple high-quality audio formats such as Dolby TrueHD and DTS-HD Master Audio. A wideband IR system (20–60kHz) enables remote control of the source from any connected display, and HDCP compliance ensures secure signal transmission.

The system measures 10.6” W x 1” H x 4.4” D and includes the EVSP1017 splitter, IR blaster, IR receiver, power supply, and product manual. Note: compatible receiver (EVRX2006) required; ensure matching generation versions for full compatibility.
