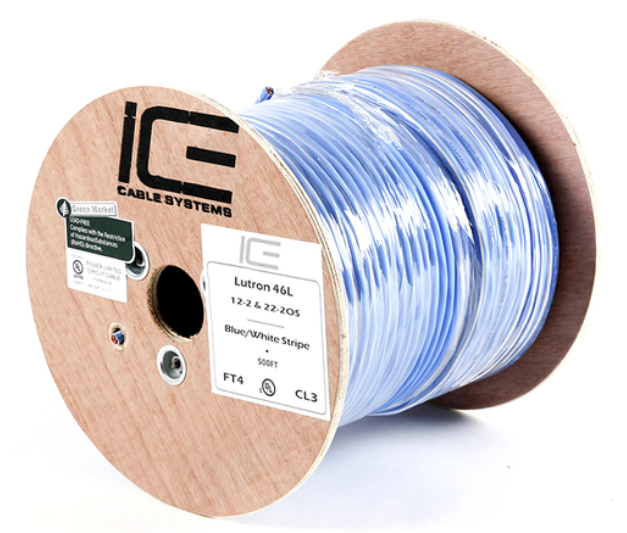

Lutron 22/2 w/Shield & Drain + 12/2 + 18/1 Plenum (CMP)- 1000ft Reel - Blue w/White Stripe

The Lutron 46L/QSL Plenum Cable is a high-performance, multi-conductor cable designed for low-voltage power, LED lighting, audio, and other on-premise applications. Its construction combines 12AWG 2-conductor, 22AWG 1-pair shielded, and 18AWG 1-conductor components in a single cable for versatile system installations.

The shielded 22AWG pair helps protect signals against electromagnetic and radio-frequency interference (EMI/RFI), while the plenum-rated construction allows installation in air-handling ducts and other plenum spaces. The cable features a durable Plenum PVC jacket, integrated ripcord, and a 300V rating.
Key Features:

• Lutron 46L/QSL cable construction
• 12AWG 2C + 22AWG 1PR Shielded + 18AWG 1C
• Stranded bare and annealed bare copper conductors
• Shielded pair for EMI/RFI protection
• Plenum-rated for air-handling and plenum spaces
• Suitable for low-voltage power and LED lighting applications
• Suitable for audio and other on-premise applications
• 300V rated
• Plenum PVC outer jacket
• Integrated ripcord
• Operating temperature: -40°C to +70°C (-40°F to +158°F)
• (UL) CL3P or C(UL)US CMP rated
• RoHS compliant
• Made in USA
• Available in 500 ft and 1,000 ft spools
• Blue/White Stripe jacket color
